Case Study: Prima Power & Advids - Product Demo Video For Unattended Production Automation

A case study on producing a high-fidelity 3D product demonstration, detailing how Advids transformed massive engineering data into a clear, compelling animation that highlights complex, automated features.

Summary

This case study examines the production of a 3D product demonstration for the Prima Power Combi Genius, a sophisticated industrial machine combining punch press and laser cutting technologies. The primary challenge was to take a massive, engineering-grade Computer-Aided Design assembly and transform it into a lightweight, animatable, and photorealistic asset. Over an eight-week period, Advids utilized its specialized Precision Visualization Workflow to overcome this "Data Gauntlet," accurately animating the machine’s complex functions and delivering a powerful sales and marketing tool.

The Challenge

The Prima Power Combi Genius is an all-in-one "factory in a box." Its key value propositions—a massive internal tool library, automated loading, scratch-free processing, and a compact footprint—are its biggest selling points, but they are also nearly impossible to film with live-action video. The action is either hidden inside the machine, too fast to capture, or too large to frame effectively in a busy manufacturing environment.

The Solution

Advids developed a full 3D, photorealistic animation. This approach allowed for "impossible" camera angles, such as flying through the machine to view the tool turret or showing a bird's-eye view of the entire automated workflow. By isolating the machine in a clean, virtual studio, the animation focuses 100% of the viewer's attention on the key features, reinforced by clean, kinetic text.

Client Profile

Prima Power is a global leader in machinery and systems for the sheet metal working industry. Their products, like the Combi Genius, are known for their advanced technology, automation, and efficiency.

Project Objective

To create a high-impact, 3D product demonstration video that clearly and concisely communicates the primary benefits of the Combi Genius. The video needed to be technically accurate, visually pristine, and serve as a primary sales tool at trade shows and in digital marketing.

The Advids Precision Visualization Workflow

For this project, Advids deployed its specialized 3D technical pipeline. This workflow is engineered to handle complex industrial projects, focusing on managing and optimizing engineering data to achieve photorealistic results and mechanically-accurate animation. This involves Data Ingestion & Optimization, Technical Animation (Rigging), and Photorealistic Look Development.

Project at a Glance

Project Timeline

1. Kickoff & Data Ingestion (Week 1)
   • Milestone: Strategic alignment and acquisition of engineering files.
   • Key Outputs: Project brief confirmed; CombiGenius_Full_Assembly_V1.STEP file received.
   • Quote: (Advids Internal) "The raw STEP file is over 12 gigabytes. This is our first hurdle. Our standard optimization pipeline will need to be customized."

2. The Data Gauntlet: Optimization (Week 1-2)
   • Milestone: A usable, optimized 3D model is created.
   • Key Outputs: Tessellated, animation-ready mesh.

3. Previsualization & Pacing (Week 3)
   • Milestone: Camera movement and project timing locked.
   • Key Outputs: Animatic_R3_Pacing_Approved.mp4 signed off by the client.

4. Look Development & Rigging (Week 4-5)
   • Milestone: Visual style approved; machine controls are built.
   • Key Outputs: StyleFrames_Blue_Metal_V4.png (approved aesthetic); Tool_Turret_Rig_Test_V2.mp4 (internal test).
   • Quote: (Client) "The 'Prima Power' blue is our signature. It must be exact under studio lighting."

5. Scene Animation (Week 6)
   • Milestone: All machine movements and feature showcases are animated.
   • Key Outputs: Full animation sequence ready for rendering.

6. Lighting & Rendering (Week 7)
   • Milestone: Final, high-resolution frames are rendered.
   • Key Outputs: High-bitrate EXR image sequences from the render farm.

7. Compositing & Final Delivery (Week 8)
   • Milestone: Text overlays, color grading, and final output.
   • Key Outputs: Final video delivered and approved.

The Production Deep Dive: From Engineering Data to Precision in Motion

Phase 1: The Data Gauntlet: Taming a 200,000-Part Assembly

• Goal: To convert a massive, engineering-grade Computer-Aided Design file into a model that is efficient enough for animation while retaining photorealistic detail.
• Process: The project began with the CombiGenius_Full_Assembly_V1.STEP file. This single file contained over 200,000 individual parts, including every nut, bolt, internal wire, and circuit board—a "digital twin" of the real machine.

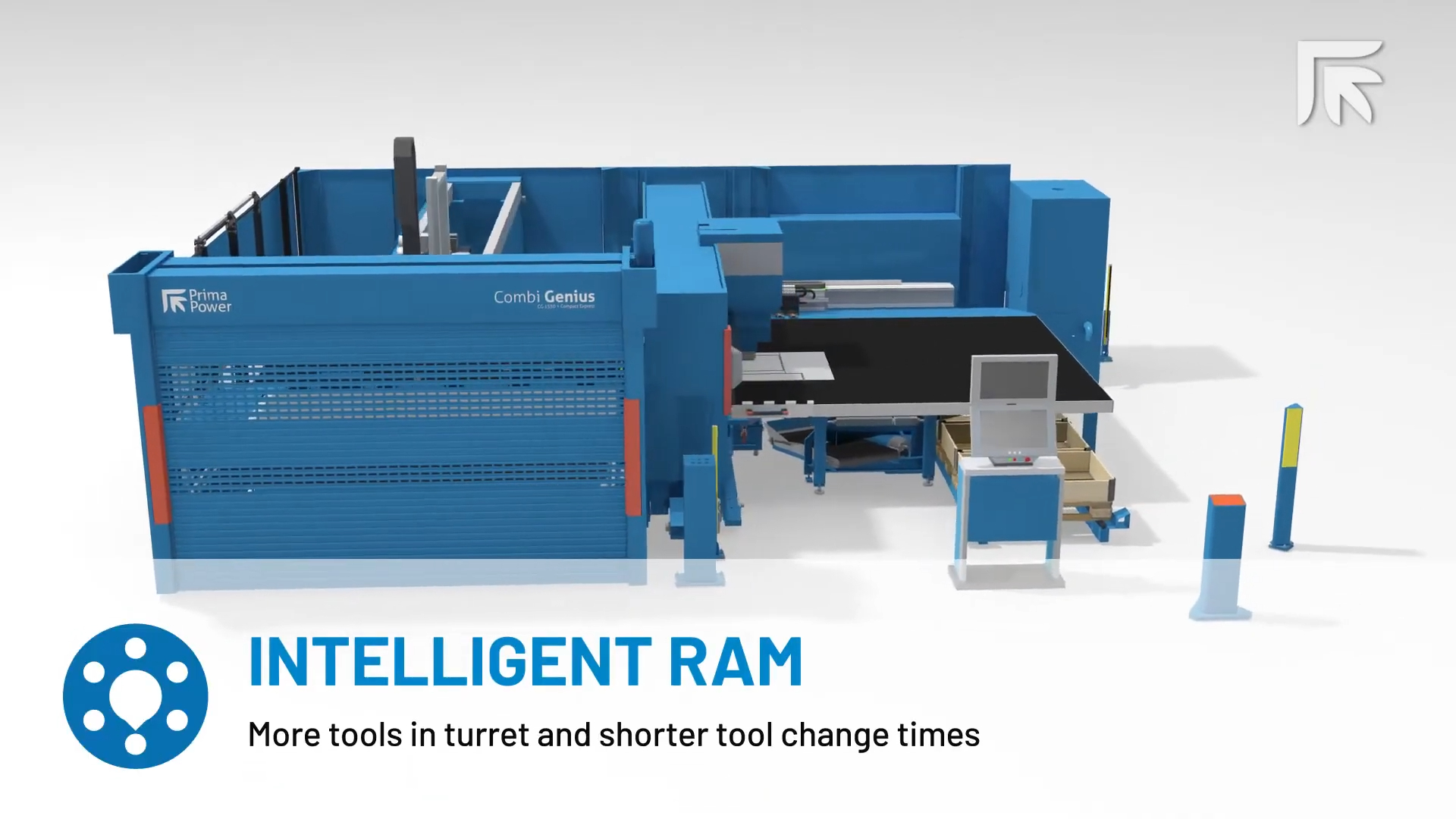

• **(IMG ASSET 1) **


  (Timestamp: 4s) This hero shot shows the full scale of the machine, representing the massive dataset Advids optimized.

• The Critical Juncture: This dataset was a classic "Data Gauntlet." Simply importing it was impossible. Automated Tessellation (converting the engineering data into polygons for animation) resulted in a file with billions of polygons, crashing the software.
• Workflow Action: The Advids 3D team didn't just optimize; they performed "digital surgery." They developed a semi-automated script that identified all non-visible internal parts and aggressively reduced their polygon count. Simultaneously, it applied high-resolution Tessellation only to externally visible, curved surfaces. This Advids-developed "smart optimization" pipeline preserved 100% of the visual fidelity while cutting the model's "weight" by over 95%, making it manageable.

Phase 3: Look Development: Signature Blue and Industrial Steel

• Goal: To achieve a photorealistic, "clinical" aesthetic that matched Prima Power's brand and the high-tech nature of the machine.
• Process: We used a Physically Based Rendering workflow to create digital materials that react to light just as they would in the real world. The two most important materials were the signature "Prima Power blue" painted metal and the brushed steel of the processing bed.
• ** **


  (Timestamp: 41s) This close-up highlights the "scratch-free" feature and showcases the precision of the Look Development on the signature blue paint.

• Feedback Loop: Nailing the Signature Aesthetic
  • Advids: "Here is the first pass on Look Development, StyleFrames_Blue_Metal_V2.png. We've matched the color code for the blue paint."
  • Client: "The color is correct, but it looks like plastic. The specular highlights are too soft. This is high-gloss painted metal, and it needs to feel strong and durable."
  • Advids: "Understood. The issue is in the roughness and metallic maps. We will decrease the roughness and sharpen the specular falloff to create a harder, more reflective metallic feel. We'll send StyleFrames_Blue_Metal_V4.png shortly."

Phase 4: Technical Animation: Choreographing the Automated Factory

• Goal: To animate the Combi Genius with mechanical precision, making its movements feel powerful, accurate, and efficient.
• Process: This phase involved "Technical Animation," or "rigging." The Advids team built a complex digital "skeleton" for the machine, with controls for the tool turret, the loading arms, the punch press, and the laser head. This allowed animators to "operate" the virtual machine.
• **(IMG ASSET 2) **


  (Timestamp: 9s) Animating the "No Tool Setups" feature required the internal tool turret to be precisely rigged and timed.

• Feedback Loop: Refining the Strategic Pacing
  • Client: "We've reviewed the Animatic_R2.mp4 on Vimeo Review. The features are all there, but the pacing is too fast. We need to linger on 'Compact Layout' and 'Accessible' for the text to have impact."
  • Advids: "Good feedback. We were focused on dynamism, but we agree, the pacing needs to serve the strategy. We will re-time the animatic, adding 2-3 seconds to each key feature shot to let the message sink in. We'll upload Animatic_R3_Pacing_Approved.mp4 by end of day."

• Workflow Action: The final animation was a perfect blend of dynamism and clarity. The laser cutting (0:15) feels fast and precise, while the "hero" shots (0:27) are slow and deliberate, allowing the viewer to absorb the machine's benefits.
• **(IMG ASSET 3) **


  (Timestamp: 15s) This shot demonstrates the "Reliable Laser Cutting" feature, which required precise technical animation of the cutting head's path.

Technology Meets Visualization Craft

This project exemplifies the synergy between powerful 3D technology and the specialized human expertise that Advids provides.

Technology-Powered Contributions

• Data Optimization: Specialized scripts to manage and Tessellate massive Computer-Aided Design assemblies.
• Photorealism: Physically Based Rendering allowed for the creation of hyper-realistic materials (painted metal, steel) that react correctly to light.
• Flexible "Set": The 3D environment allowed for a perfectly clean studio, impossible in the real world.

Advids’ Visualization Craft (Human Expertise)

• Strategic Problem-Solving: Developing a custom "Data Gauntlet" solution (the optimization script) to an engineering-level problem.
• Technical Artistry: The "rigging" of the machine, which is a blend of technical skill and artistic feel to ensure motion looks real.
• Brand Interpretation: Translating feedback like "it feels like plastic" into a technical solution (adjusting roughness maps) to nail the brand's aesthetic.
• Pacing and Storytelling: Understanding when to be fast (showing efficiency) and when to be slow (letting a key benefit land).

Outcomes & Strategic Learnings

1. A Powerful, Reusable Sales Tool: Prima Power received a high-impact, 4K animation that serves as a cornerstone of their product marketing, perfect for grabbing attention at trade shows, embedding on their website, and empowering their sales team.
2. Clarity Over Clutter: The 3D animation successfully demonstrated key "invisible" features (like the internal tool turret) that are impossible to show with live-action video.
3. The "Data Gauntlet" is the First Victory: This project reaffirmed that for complex industrial 3D, the first 20% of the project (data optimization) is the most critical. The Advids pipeline, designed for this specific challenge, was the key to success.
4. Creation of a "Digital Twin": Prima Power now has a fully optimized, rigged, and "shaded" 3D model of their flagship product. This "digital twin" is a valuable asset that Advids can now easily repurpose for future animations, different product configurations, or interactive applications.
